4G GSM Gate Opener Relay Switch Wireless Door Access Free Phone Call Unlock Remotely Open Sliding Swing Garage Gate Shutter Barriers Door Remote Control Pump RTU5024

Name: 4G GSM Gate Opener Relay Switch Wireless Door Access Free Phone Call Unlock Remote Open Or Close Sliding Swing Garage Gate Shutters Barriers Access Doors Remote Control Pump Sluice Gate Penstock Household Electrical Appliances

Model: RTU5024

Brand: VinFine

Brief Introduction:

The GSM Gate Opener/ Relay Switch RTU5024 is a powerful GSM Relay, it is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM Gate Opener/ Relay Switch RTU5024 can be used in places which require to turn ON/ OFF your system, machines, equipment remotely with a FREE call from your mobile phone.


Just dial from Authorized user number at the specified time then the barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener/ Relay Switch RTU5024. There are no call costs, the GSM Gate Opener/ Relay Switch RTU5024 rejects the call from authorized number then carries out the turn ON/ OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to unauthorized type.

The GSM Gate Opener/ Relay Switch RTU5024 supports GPRS communication function, very suitable for remotely monitoring outdoor cabinets and stations of telecom company, traffic origination, power supply company and so on. It can be authorized different repair person or maintains person to open the cabinets or stations at the specified time, saving time to get the keys for the locks and saving cost to repair or replace the locks while the person lost the key. And also can remote monitoring the door is opened or closed, or illegal opened.

Features:

◆ GSM Quad-band, can work in the worldwide GSM Networks, Optional 3G or 4G.
◆ No call charges. The GSM Gate Opener/ Relay Switch RTU5024 rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring'.

◆ Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
◆ Secure - Using caller ID for identification, unknown callers are ignored.
◆ Can be operated from anywhere, no distance limit.
◆ Add or remove users by SMS Text command.
◆ No need to provide a remote control or keys for different users.
◆ Up to 200 authorized phone numbers can be configured at the specified time.

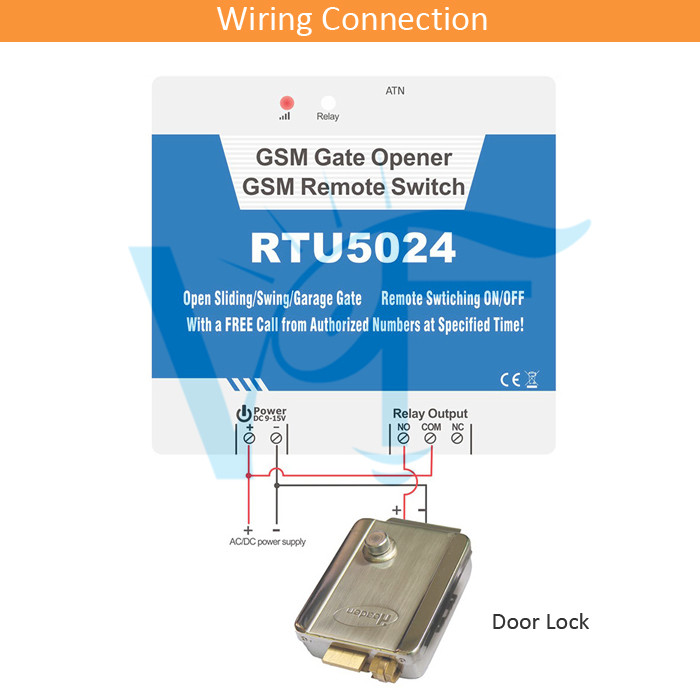

◆ One output with relay rating 3A/240V AC for connecting the switch of the door or machines.
◆ The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
◆ The relay close or open time is programmable.
◆ Based on GSM network, applied to many applications.
◆ Smart phone APP for configuration.

Specification:

◆ DC Power Supply: DC12V/ 1A (Standard adapter)

◆ Power Consumption: 12V Input; Max. 50mA/ Average 25mA
◆ Frequency Range: 850/900/1800/1900MHz or 3G WCDMA or 4G LTE
◆ SIM Card: 3V SIM Card
◆ Antenna: 50 Ω SMA Antenna interface
◆ Temperature Range: -20 - + 60 °C
◆ Humidity Range: Relative humidity 90% (condensation free)
◆ Relay Rating: 3A/240V AC

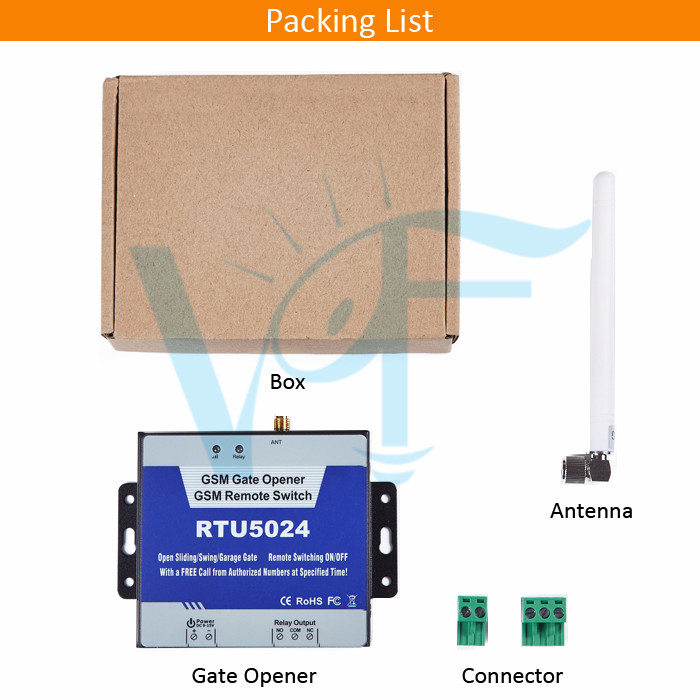

◆ Standard Package: 1* Gate Opener, 1* GSM Antenna, 1* User Manual, 1* Box

★ Applications:

◆ Remote open/ close swing/ sliding gates, doors, shutters, garage doors, locks with a free call.
◆ Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.

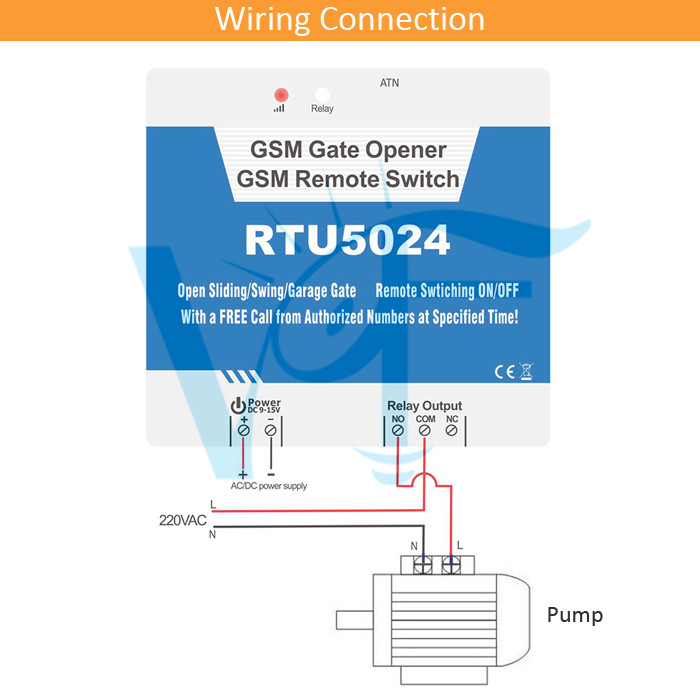

◆ Industry: Remote switch equipment. For example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
◆ Agriculture: Remote control pumps, etc.
◆ Business: Remote control electronic boxes, bright billboards, LED signs, etc.

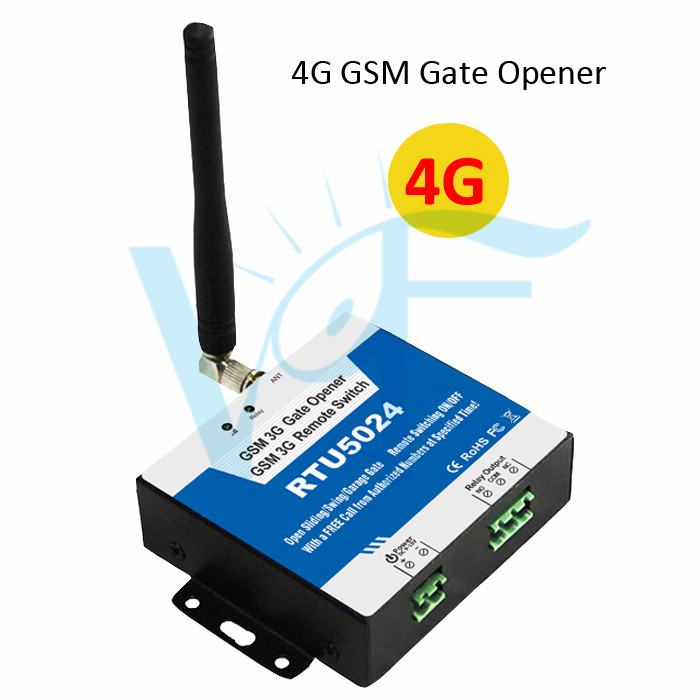

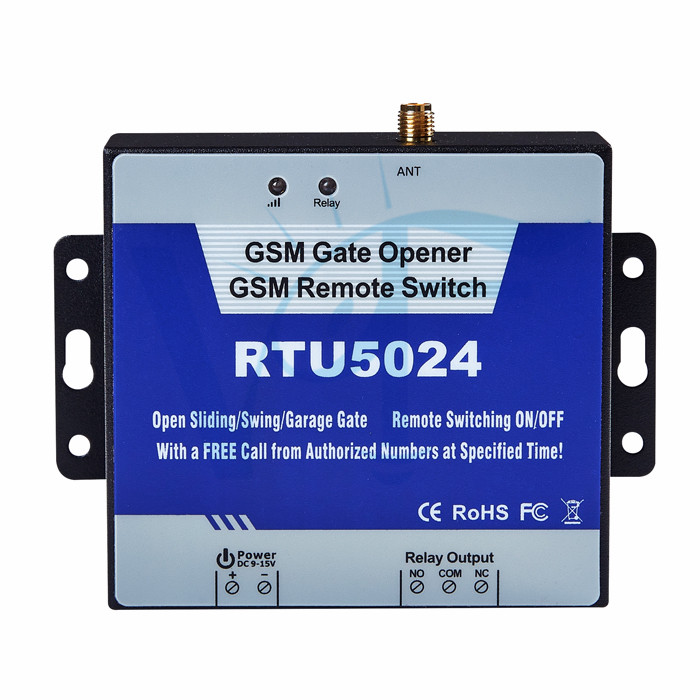

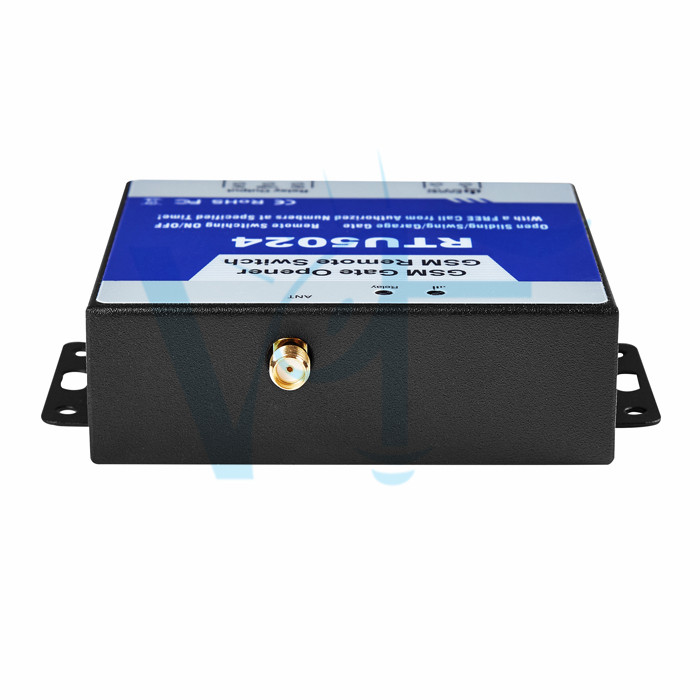

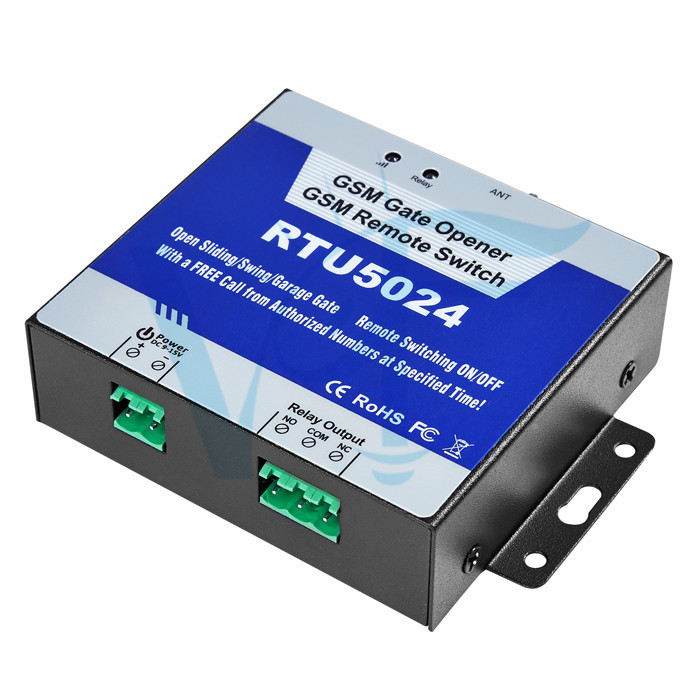

★ Product Pictures:
