2G Wireless GSM Villa Office Building Apartment Intercom Access Control System Remote Control Free Charge Phone Call Remote Unlock GSM Gate Opener Two-way Voice WIA-200B

Name: 2G Wireless GSM Villa Office Building Apartment Intercom Access Control System Remote Control Free Charge Phone Call Remote Unlock GSM Gate Opener Two-way Voice

Model: WIA-200B

Brand: VinFine


◆ GSM Quad-band 850/900/1800/1900MHz GSM 2G module

◆ High quality two-way voice intercom technology

◆ No call charge, open the gate by auto-rejected phone call from house owner & families

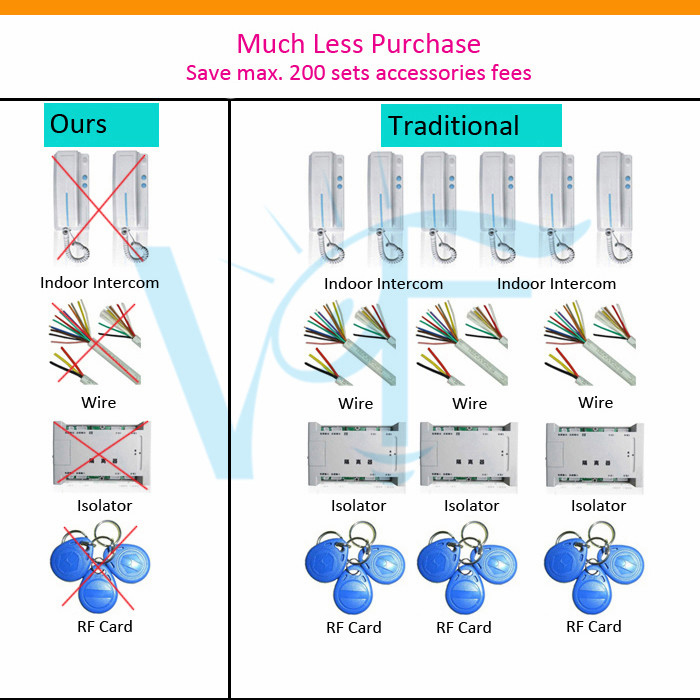

◆ No need to install indoor intercoms, no need wiring and indoor intercom cost

◆ No need to provide remote control or keys or RFID card

◆ House owner & families can press digit 1 or 2 or 3 on the mobile phone to open the door directly when visitor press room number.

◆ Can open the door for visitors from anywhere, no distance limit

◆ Up to 200 houses management, special design for apartment, rental housing, hostel, etc.

◆ Up to 5 authorized families' phone number can call in to open the gate for each house

◆ Up to 1000 authorized phone numbers

◆ Individual password for each room, just press the password on keypad for open the gate

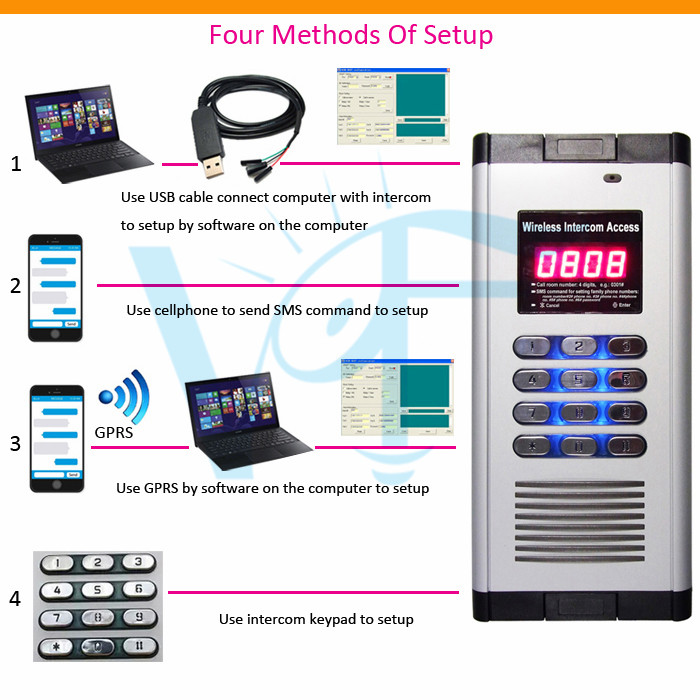

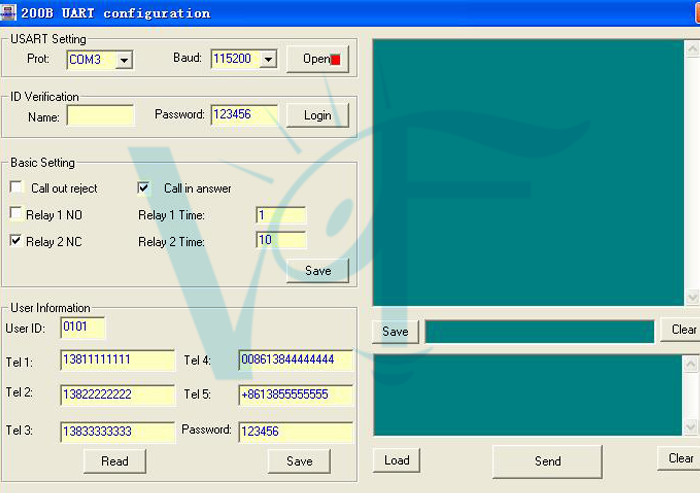

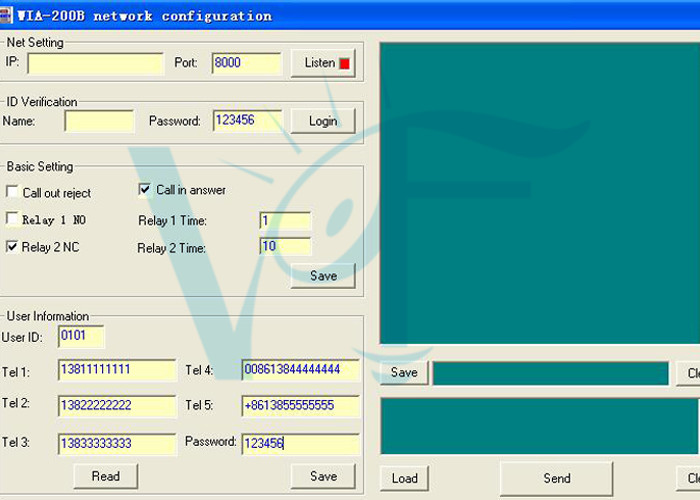

◆ Administrator can set up through three methods: on the computer (through network configuration software), mobile phone (send SMS commands), intercom keypad

◆ User friendly design, high brightness LED display, Alloy shell and keypad

◆ Easy installation and maintenance; No need wiring or other complex accessories

◆ 2 Relay outputs (NC/NO), well compatible with universal electronic locks, CCTV, DVR Camera, etc.

◆ Relay close time editable (1~300 seconds)

◆ 12V DC Power Supply, low power consumption


◆ DC Power Supply: 12V 1.5A

◆ Power Consumption: Standby 12V/70mA;  Working Max. 12V/300mA

◆ GSM Frequency: Quad-band 850/900/1800/1900MHz

◆ Max. Autorized Phone Number: 1000

◆ Max. Room Number: 200

◆ Max. Families' Phone Number For Each Room: 5

◆ Relay Outputs: 2, Rated: 5A/30V DC, 5A/250V AC

◆ Temperature Range: -10 - +70 °C

◆ Humidity Range: Relative humidity 95% (condensation free)

◆ N.W.: 0.8kg; G.W.: 1.5kg

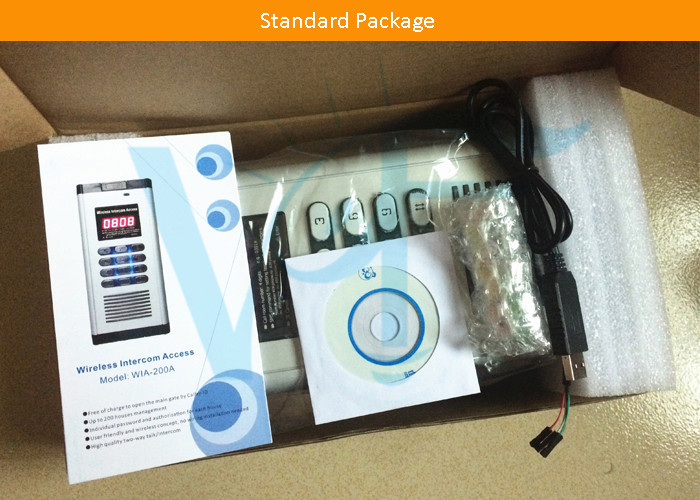

◆ Standard Package: 1* wireless intercom access(include accessories), 1* user manual, 1* USB Cable, 1* CD (include software)

Brief Introduction:

Our Building Wireless Intercom Access is a new type advanced Access Control System, it supports dial to open the door for user or visitors. By this new type access control system, no need to install indoor intercom any more to save wiring and indoor intercom cost.

The Wireless Intercom Access inbuilt quad band 850/900/1800/1900Mhz GSM module, distribute global market.

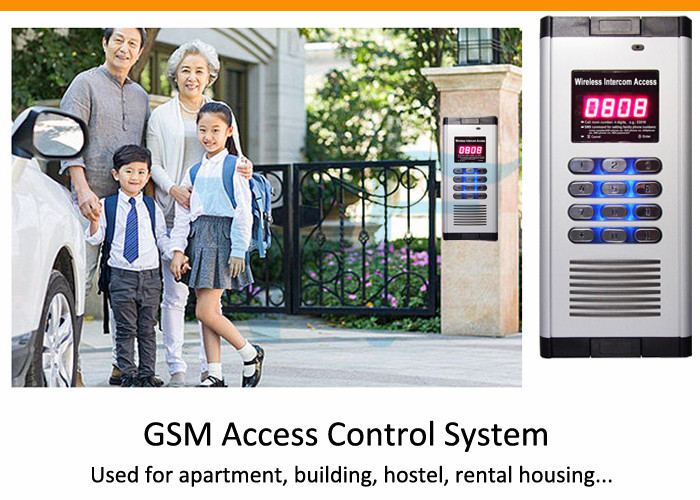

It supports up to 1000 authorized phone numbers for maximum 200 room numbers, it is special used for apartment, building, hostel, rental housing, office, high-rise residence, villa, community...

For authorized users, the Wireless Intercom Access will reject the call from authorized number then carries out the open door action on the first 'ring', no call charges.

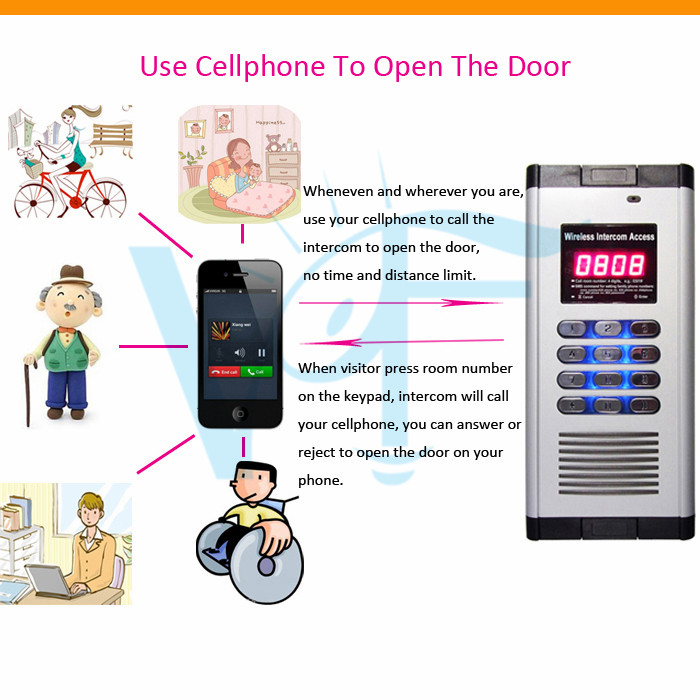

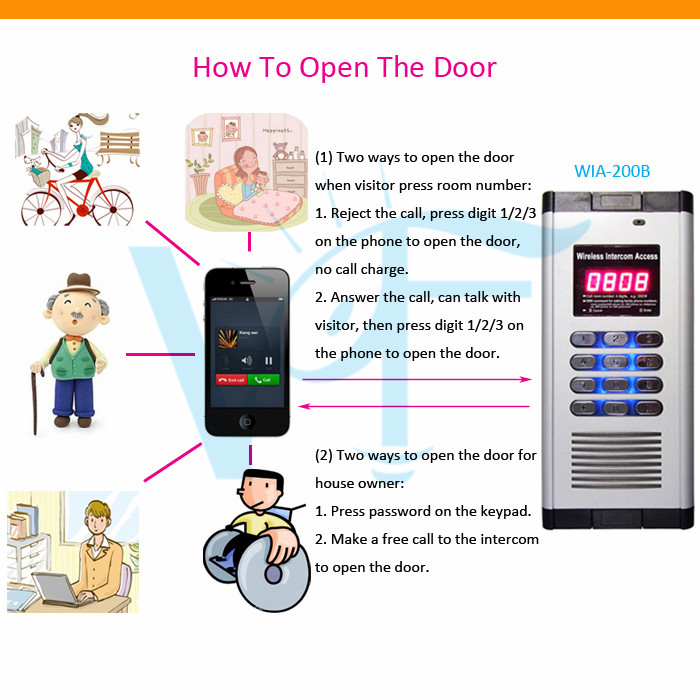

For visitors, press the room number on the Wireless Intercom Access keypad, the Wireless Intercom Access will dial the room owner’s phone automatically, the room owner can open the door or reject to open the door on his mobile phone remotely.

For Administrators, can manage the room owner phone numbers by SMS or by keypad or software, very easy and convenient.

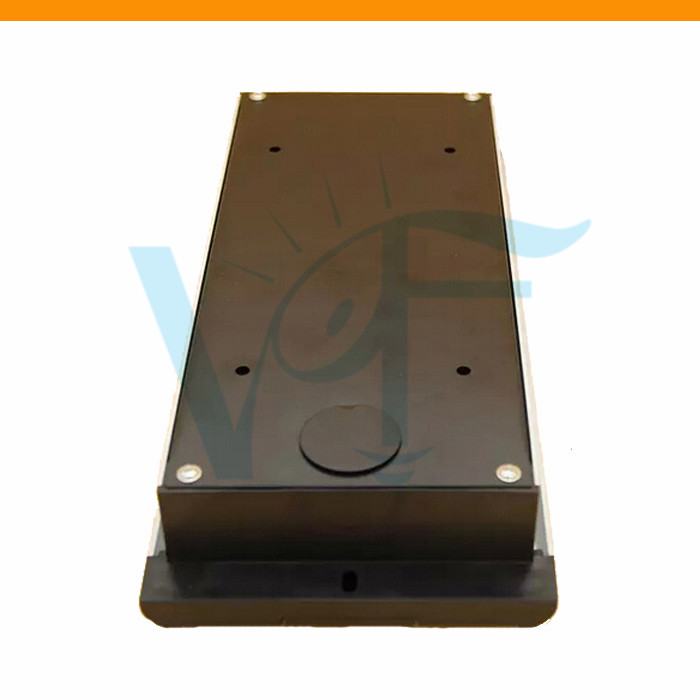

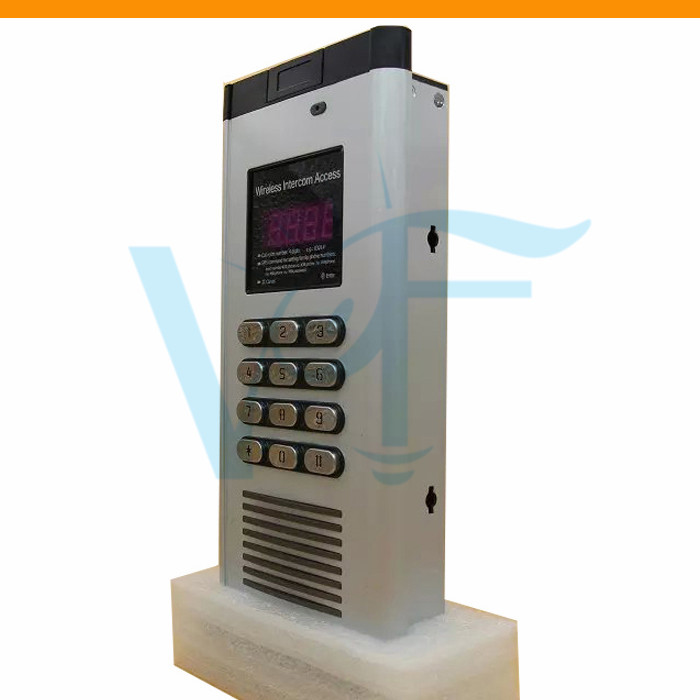

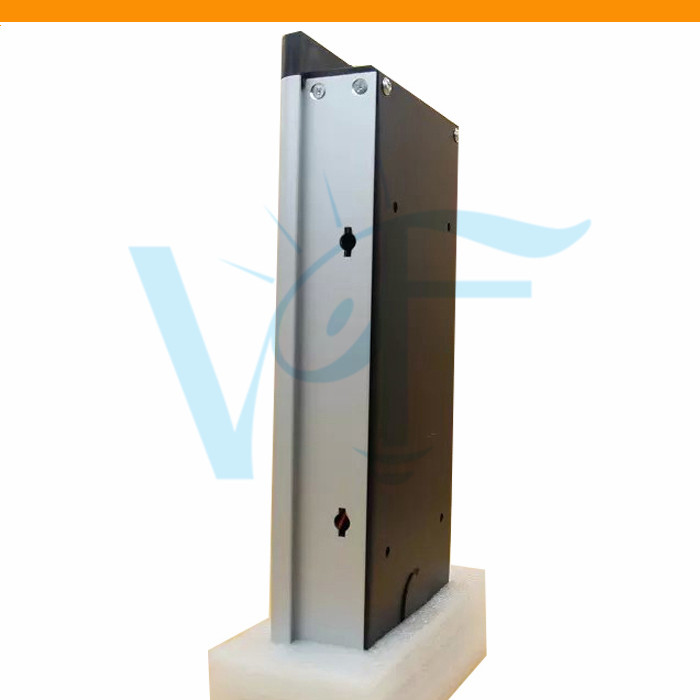

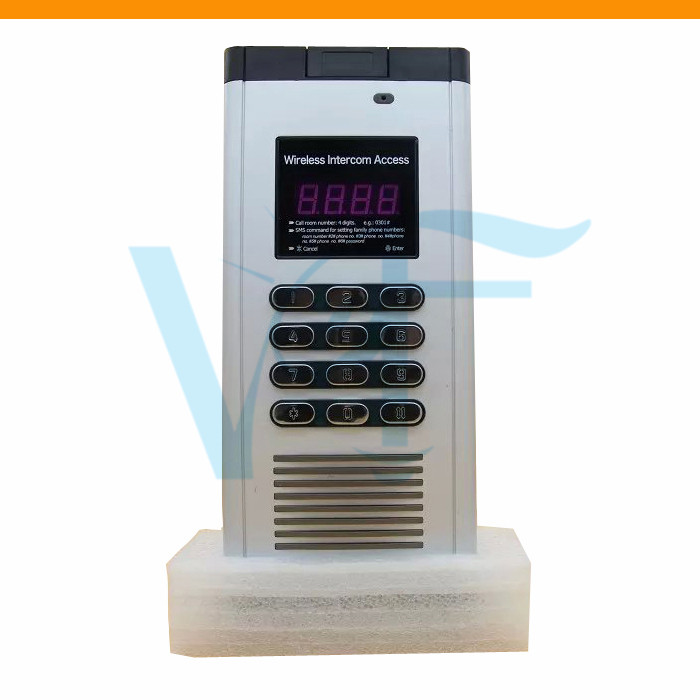

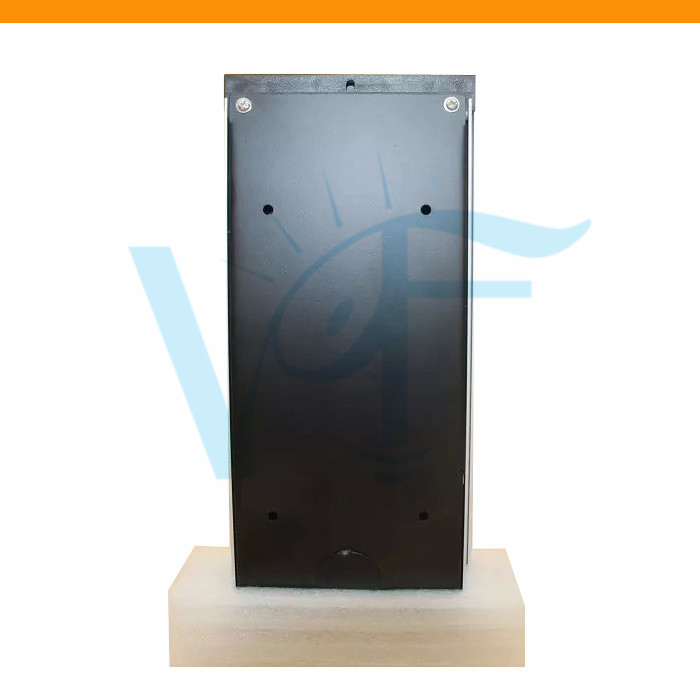

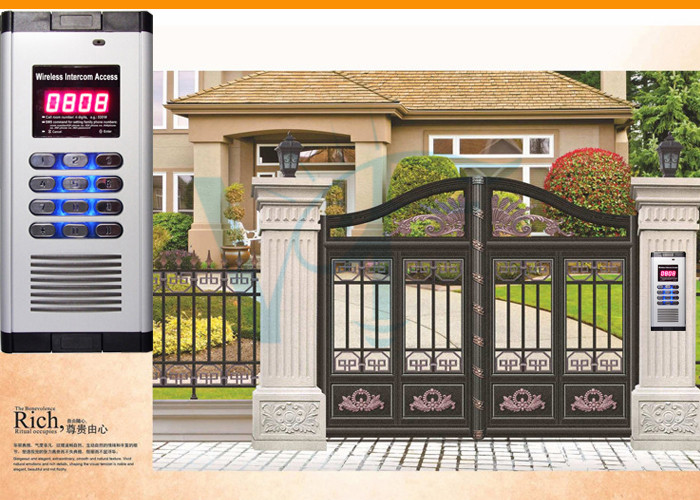

Product Pictures:
