3G Smart Touch Wireless Villa Office Building Apartment Intercom Access Control Remote Control Free Charge Phone Call Remote Unlock GSM Gate Opener Two-way Voice WIA-200D

Name: 3G Smart Touch Wireless Villa Office Building Apartment Intercom Access Control Remote Control Free Charge Phone Call Remote Unlock GSM Gate Opener Two-way Voice

Model: WIA-200D

Brand: VinFine


Features:

◆ GSM frequency: 850/900/1800/1900MHz; 3G version.
◆ High quality two-way voice intercom technology.
◆ One DIN input for opening the door inside.
◆ One key to dial, press button to call the first 5 authorized numbers, if it is connected, press # to open the door. (call phone number one by one, if first number doesn't answer or reject the call, it will call second one, if second one answer and press # to open the door, it won't call next one.
◆ 200 authorized phone numbers, each number can be called in to open the door in the setting period.
◆ No call charge, open the gate by auto-rejected phone call from house owner & families.
◆ No need to install indoor intercoms, no need wiring and indoor intercom cost.
◆ After the authorized number calls in to open the door, it can send SMS to inform users.
◆ The opening time can be set for 0-999 seconds. 0 indicates that the relay is closed for 0.5 seconds then it breaks off. 999 indicates that the relay is closed all the time, until the authorized number calls in again, then it breaks off.
◆ Query the current state of the device via SMS (relay status and GSM signal value)
◆ Have timed self-test. The current state of the host can be sent to the first user via SMS at regular time.
◆ Use clock on the modules. Each time the host will send a SMS to correct the time after starting.
◆ Easy installation and maintenance; No need wiring or other complex accessories.

Specification:

◆ GSM Frequency: 850/900/1800/1900MHz; 3G version.
◆ Max. Autorized Phone Number: 200
◆ Relay Rating: 3A/240VAC
◆ DC Power Supply: 9-15V
◆ Power Consumption: 12V input Max. 50mA
◆ SIM Card: Supporting 3V SIM Card
◆ Temperature range: -20-+60 °C
◆ Humidity range: Relative humidity 10%~90%
◆ Size: 13.5*6*4cm
◆ N.W.: 0.6kg

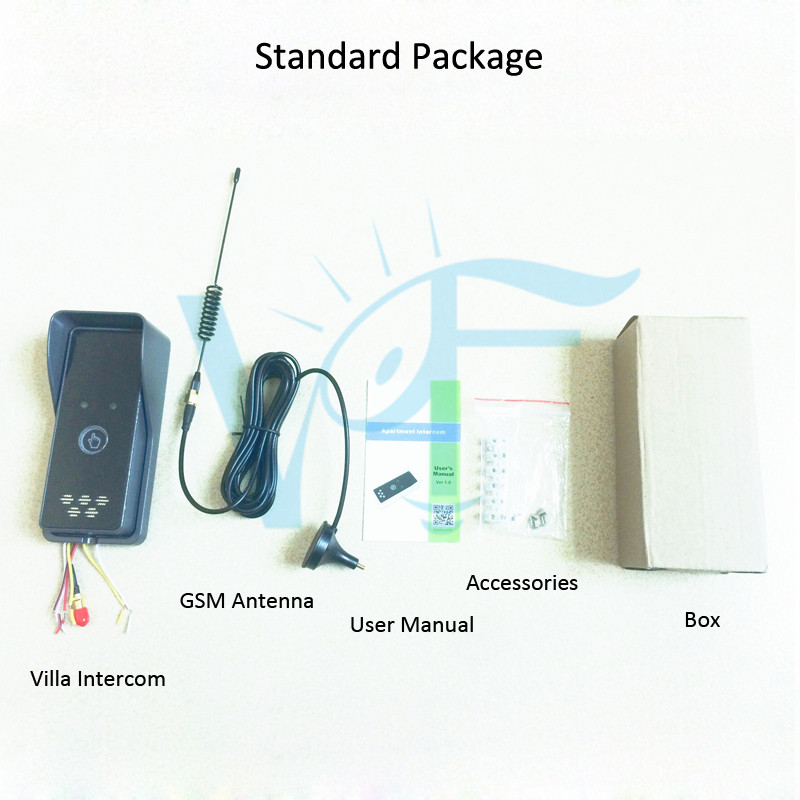

◆ Standard Package: 1* Wireless intercom access, 1* GSM antenna, 1* User manual, 1* Box

Brief Introduction:

The GSM Villa Wireless Intercom Access is a new type fashion designed access control system, it supports dial to open the door with free call charge, can remote open the door for visitors, very suitable for different office, villas and public occasion…

Most important, it has a inside DIN input for inside fast opening the door, such as fast open by pressing button.

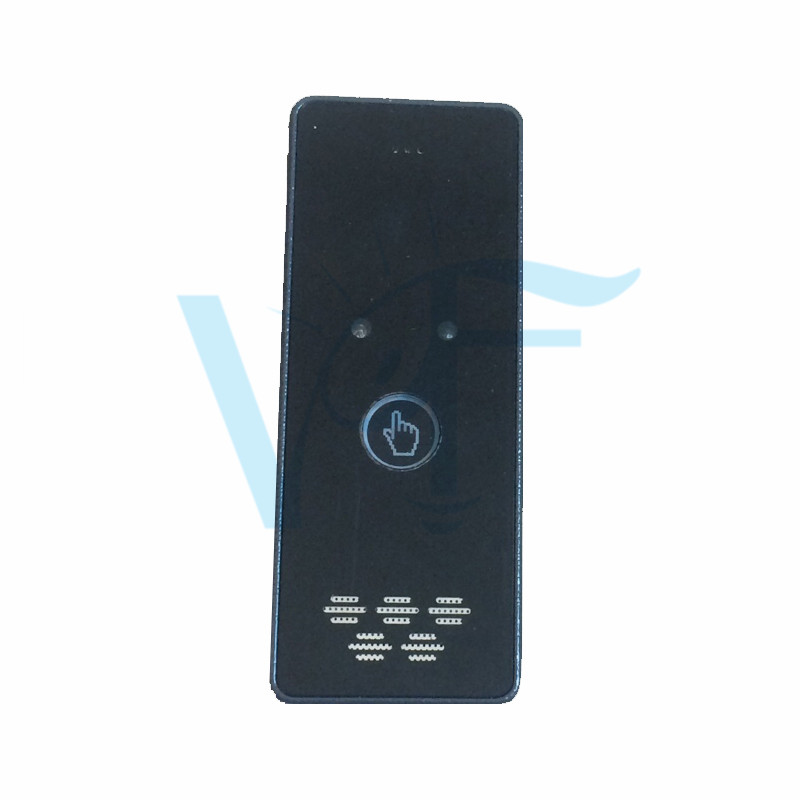

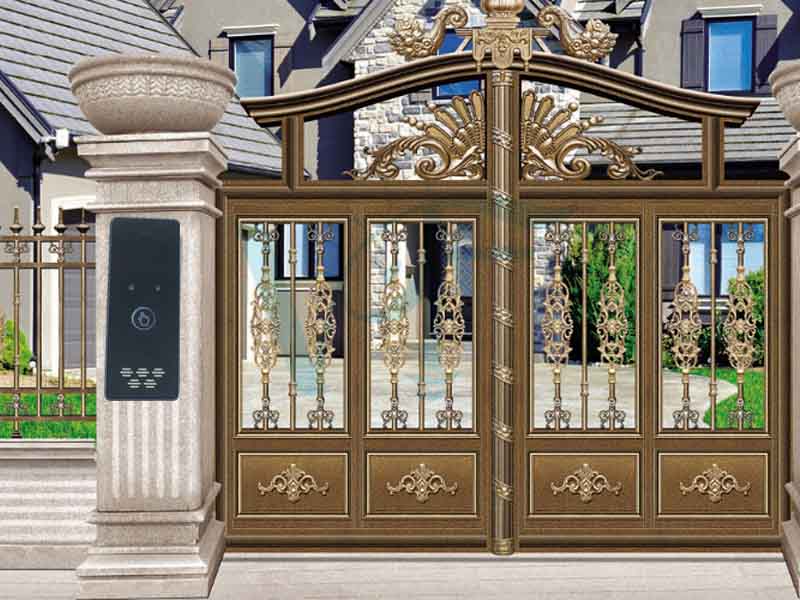

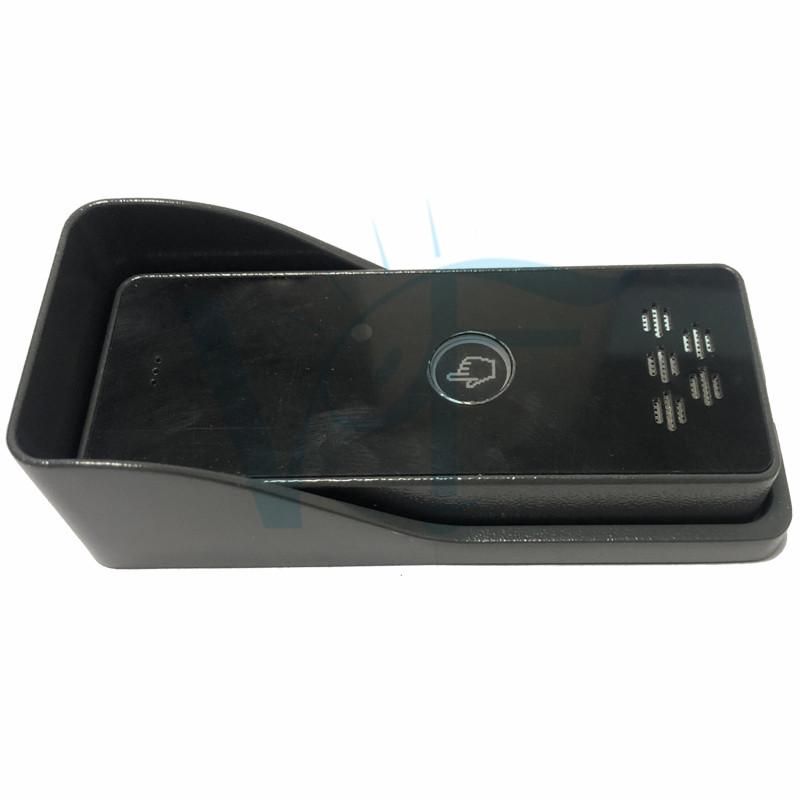

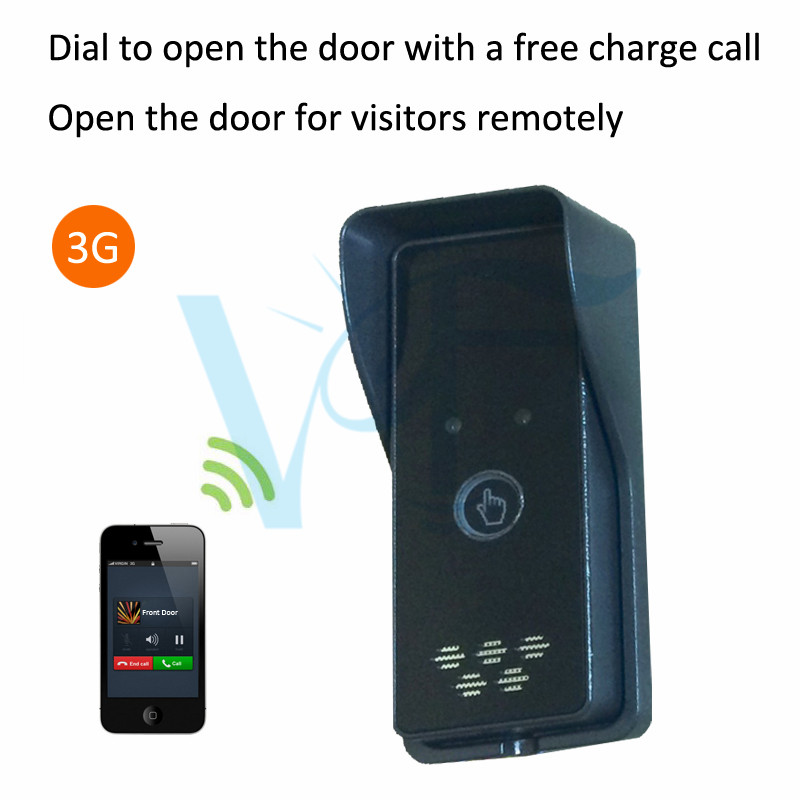

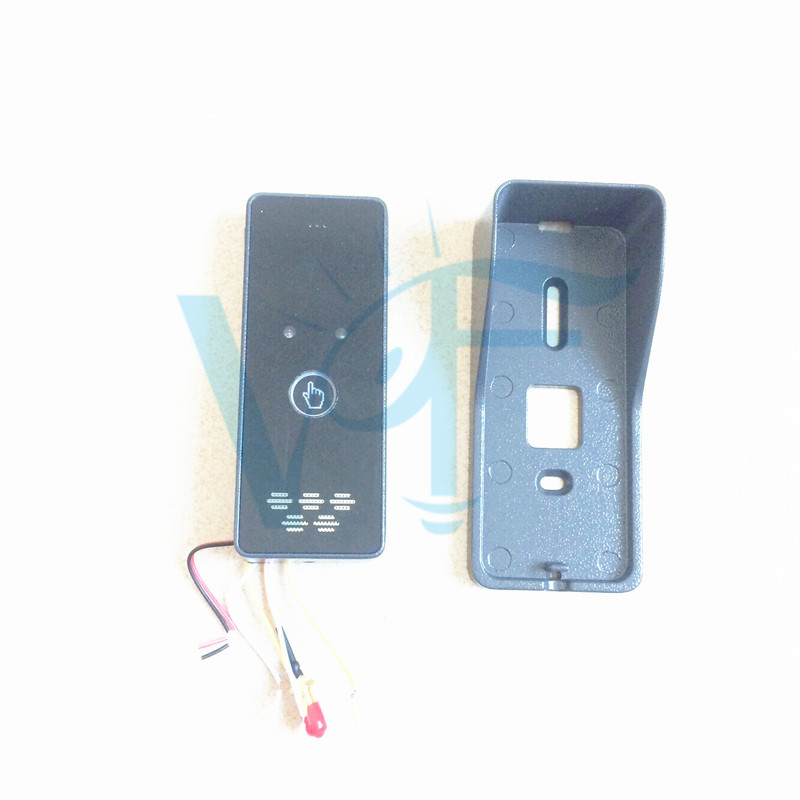

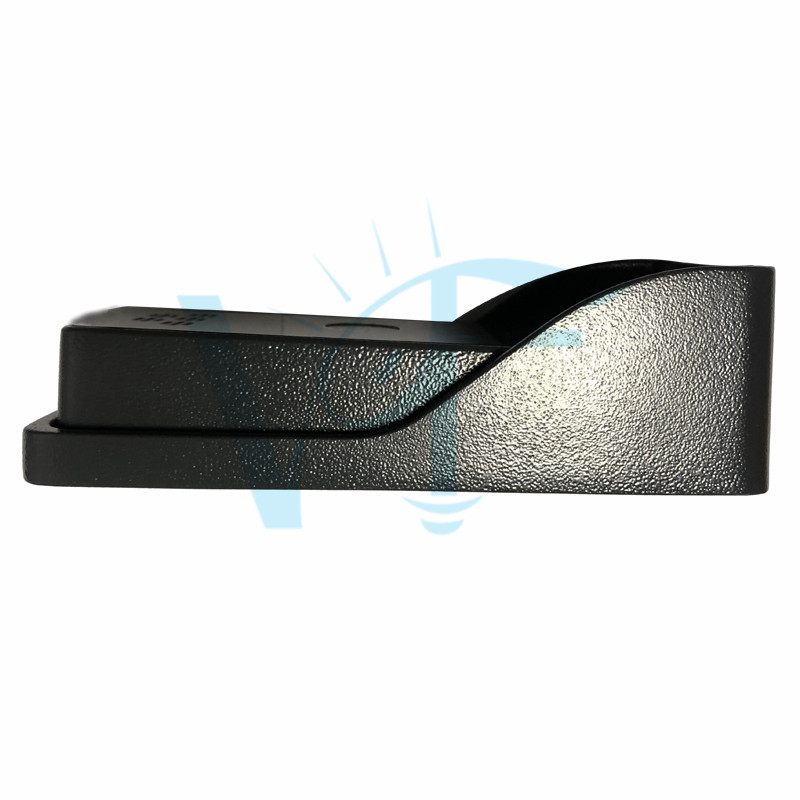

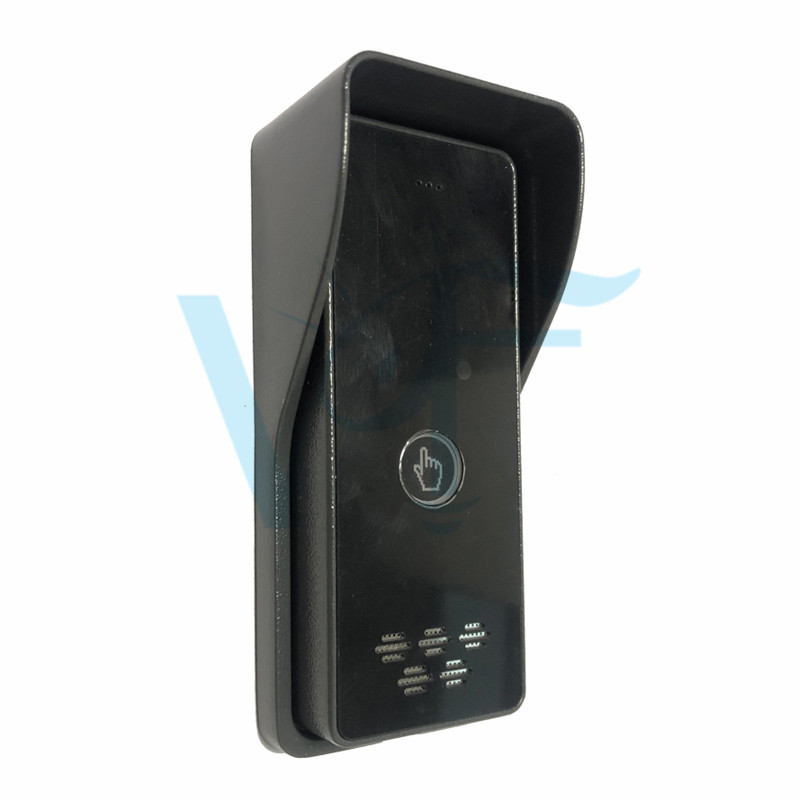

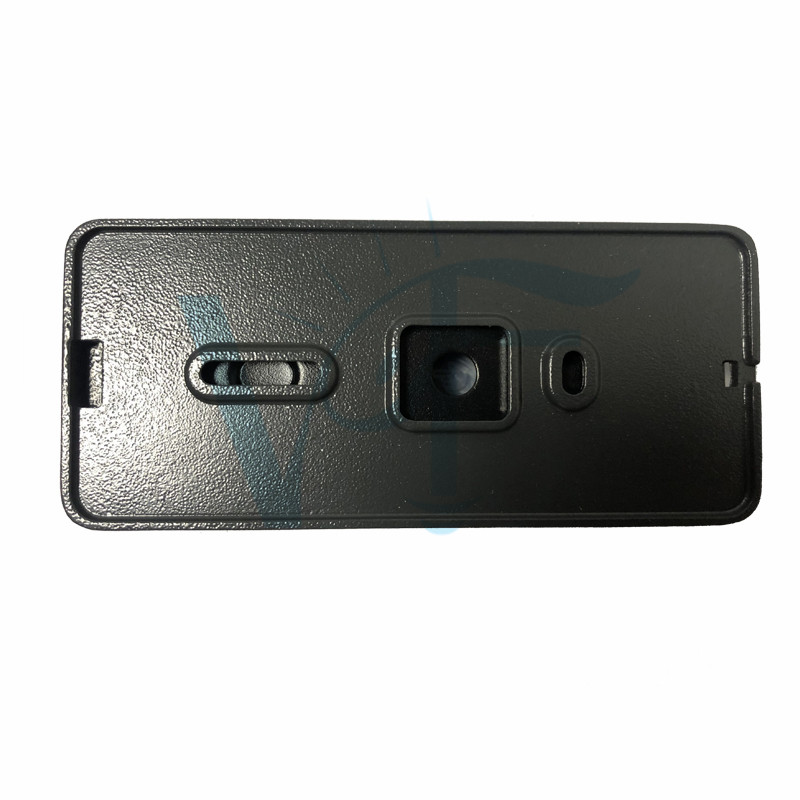

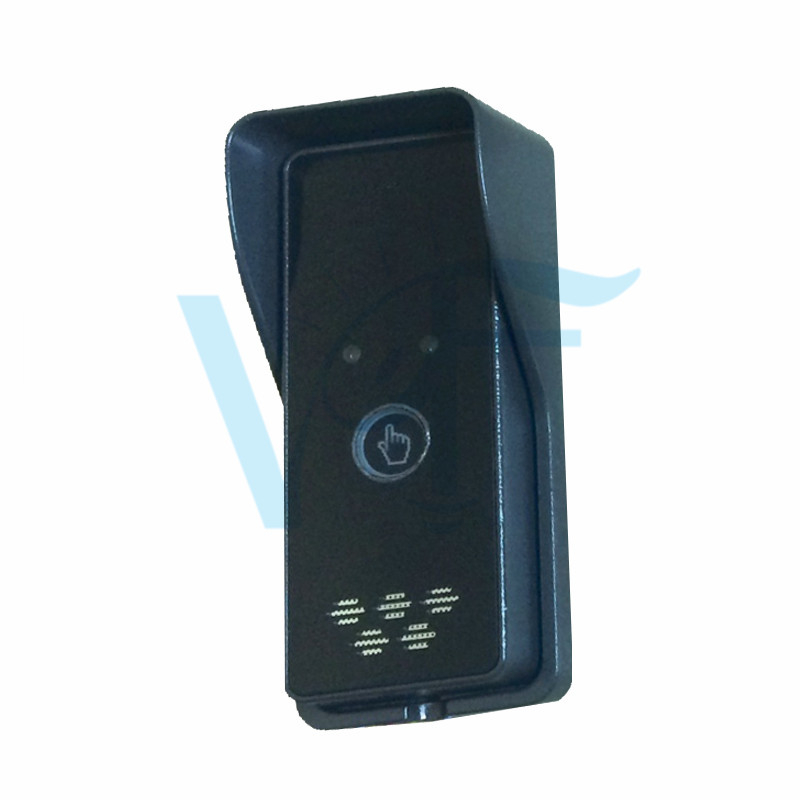

Product Pictures:
